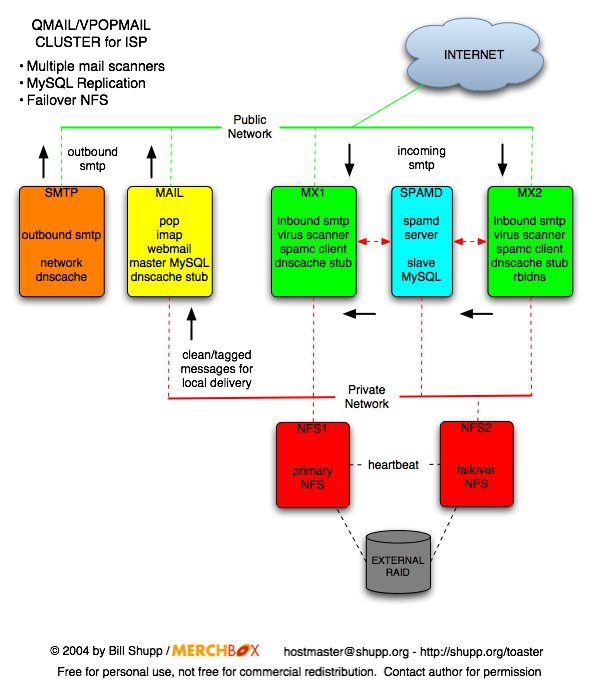

Brief notes on this ISP Qmail/Vpopmail Cluster design

Load Balancing

• Load balancing is done via round-robin dns. This allows for easy scaling of the cluster. You can add/remove additional machines as needed. Also, you won't need expensive hardware load balancers, just a couple of cheap linux servers running tinydns.

Client Configuration

• To take full advantage of dns load balancing (in regards to scaling), your clients should be configured to look at different hostnames for incoming and outgoing mail servers. For this example, you could use "mail" for the incoming server, and "smtp" for outgoing server. If this is not possible, you could setup port forwarding at the router to segregate incoming and outgoing mail. But this will not scale as well, unless you invest in a hardware load balancer.

Qmail patches

• MX machines (spam scanners):
  • qmail-queue (for spam assassin site-wide, virus scanning)
  • chkuser (check for valid vpopmail user, other envelope checking)
  • spam throttle
• MAIL:
  • big concurrency
• SMTP:
  • big concurrency
  • smtp-auth (only needed if you cannot limit smtp access via IP)
  • spam throttle

DNS Caching

• All except SMTP will have "nameserver 127.0.0.1" in their resolv.conf files. Each machine will have dnscache running on localhost that will simply forward queries to SMTP. SMTP will then perform the lookup, and the stub resolver will cache it. SMTP will have the IP of its private network address in resolv.conf, rather than running an additional dnscache on localhost. This not only provides a network wide (well, cluster wide) dns cache, but also cuts down on intranet dns traffic. NOTE, you will want to install the round-robin dnscache patch to dnscache.

NFS

• All NFS machines should probably not run linux, but something with better NFS performance like FreeBSD.
• The NFS server will share the vpopmail home directory, and qmail's control and users directories. In control, the "me" file will just be a link to "/etc/me". This way, all NFS machines will have the same qmail/vpopmail data except for the "me" file.

Credits

• By Bill Shupp, with some ideas from Gary Houle and Jason Wade, and also Michael Boman. Caching ideas come from Matt Simerson.
